Dr. Nelson's Plate Tectonics Paradigm Unit...
...and Geoff Hagopian's Solutions
[page
1,
page
2, page
3, page
4, page
5,
page
6, page 7,
page 8]
Researching Part 4: Examine the graphic
of
sea
floor topography from gravity readings*. Are all types of plate boundaries
found in both the Atlantic and the Pacific Oceans?
Teacher Directed Questions: Students should include
in their portfolio answers to the essay questions from above. What plate
boundaries did you see, use this as a class discussion to close the lesson.
Dale S. Sawyer has a nice collection of info on
this topic at http://www.ngdc.noaa.gov/mgg/announcements/text_predict.HTML
http://zephyr.rice.edu/plateboundary/
At this site: http://www.seismo.unr.edu/ftp/pub/louie/class/100/plate-tectonics.html

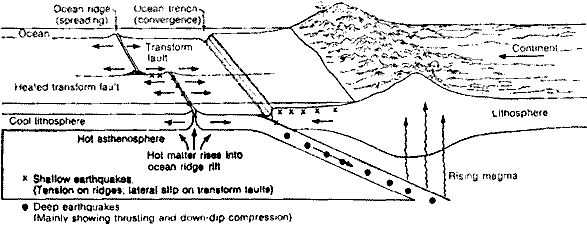

we find a nice description and illustration:
"...the Earth releases its internal heat by convecting,
or boiling much like a pot of pudding on the stove. Hot
asthenospheric mantle rises to the surface and
spreads laterally, transporting oceans and continents as on a slow conveyor
belt. The speed of this motion is a few centimeters per year, about as
fast as your fingernails grow. The new lithosphere, created at the ocean
spreading centers, cools as it ages and eventually becomes dense enough
to sink back into the mantle. The subducted crust releases water to form
volcanic island chains above, and after a few hundred million years will
be heated and recycled back to the spreading centers. "
Elsewhere we read that "There are three main plate
tectonic environments: extensional, transform, and compressional. Plate
boundaries in different localities are subject to different inter-plate
stresses, producing these three types of earthquakes. Each type has its
own special hazards. "
Ok, I'm getting confused and having a hard time finding the information
I want. So I'm going here:
http://wwwneic.cr.usgs.gov/neis/plate_tectonics/plate_tectonics.html
which has some relevant articles including The Dynamic Planet, which
you can find here: http://pubs.usgs.gov/pdf/planet.html
It seems we have 3 types of plate boundaries:
-
Oceanic spreading ridges such as those in the mid-Atlantic rift and the
East Africa rift.
-
Subduction zones caused by converging continental plates, which often lead
to deep trenches such as between the Nazca plate and the South American
plate; the Aleutian trench in Alaska; the arc-trench systems in much of
the western Pacific. The Continental lithosphere is not as dense
as the oceanic lithosphere and so is not as prone to subduction, as witnessed
here the Eurasian and Indian continents converge to create a very thick
spot of the crust we call the Himalayas and Tibetan Plateau.
-
Transform Plate boundaries were two plates slide past eachother.
The best example is perhaps the San Andreas Fault which passes a few miles
from my home in the Mohave Desert. Many transform faults horizontally
offset the divergent plate boundaries to produce the step like plate margins
clearly shown on the maps.
So, to propose an answer to the question, no.
There aren't oceanic spreading ridges in the Pacific and there aren't subduction
zones in the Atlantic, at least so far as I can tell.
Researching Part 5: Examine the graphic of
sea
floor topography from gravity readings. Of the continents moving away
from each other, which show the best fit between their margins (true geological
margins, not just geographic margins), and which show the poorest fit.
Teacher Directed Questions: Students should include
in their portfolio answers to the essay questions from above. In portfolio
give reasons for the best (or poorest) fit.
Running the Quicktime movie ( http://www.ucmp.berkeley.edu/geology/tecall1_4.mov)
over the last 200 years, it seems evident that North and South America
fits pretty neatly with Europe and Africa, but the Indo-Australian, African
and Eurasian plates show a pretty poor fit. There has been more fragmentation
in this latter group and, for whatever reason, it seems the Indo-Australian
plate has been moving north pretty fast and jammed pretty snug against
the Eurasian plate.
