August 1, 2005
Wow, it's August, huh? I'll be packing
off to Seattle with the family tomorrow, so there will likely be a
gap in this Sablog.
Back to OpenGL. It's a bit less fun in the
web venue since it
doesn't seem to have an obvious way of internet delivery like java.
3DML
is software for doing web-based 3D modeling in XML. It
competes with VRML, but we'll save that maybe for another day.
How about bringing in some interactive devices,
like keyboard and mouse? GLUT has a keyboard callback,
glutKeyboardFunc() that is
invoked when a key is pressed. The pressed key is returned as
an unsigned char which is typically processed with an if or a switch
logic. For example,
glutKeyboardFunc(keyPress);
with the defined function
void
keyPress(unsigned char key, int x, int y) {
if(key
== 'q' || key == 'Q' || key = '\27') exit(0);
}
The keyboard callback also gives the mouse
coordinates, x and y are given in screen coordinates with the origin
in the upper left corner. Certain special keys are handled
differently--which we'll get to later.
The mouse callback is similar, using
glutMouseFunc() with, for
example glutMouseFunc(mouseButton)
to use, say
void
mouseButton(int button, int state, int x,
int y) {
if(state
== GLUT_DOWN&&button == GLUT_LEFT_BUTTON) exit(0);
}
Where this gets more interesting is when you
can use the mouse to draw. What follows is a code snippet that
will draw a rectangle with diagonal corners corresponding to two
clicks of the right mouse button and whose sides are horizontal and
vertical (left button exits):
int hh;
//global variable for viewport height
void
mouseButton(int button, int state, int x,
int y) {
static
bool first = true;
static int
xx, yy;
if(state
== GLUT_DOWN&&button == GLUT_LEFT_BUTTON) exit(0);
if(state == GLUT_DOWN&&button == GLUT_RIGHT_BUTTON) {
if(first) {
xx = x;
yy = hh - y;
first = !first;
}
else {
first = !first;
glClear(GL_COLOR_BUFFER_BIT);
glBegin(GL_POLYGON);
glVertex2i(x1,y1);
glVertex2i(x1,hh -
y2);
glVertex2i(x2,hh -
y2);
glVertex2i(x2,y1);
glEnd();
}
}
}
When the mouse is moved without any button
pressed, that's a "passive motion event;" with a button pressed is
called a "move event." A mouse entering or leaving a window is
an "entry event." Who thinks up these crazy names? The
callback functions corresponding to these take function pointers
which return the mouse position:
void glutMotionFunc(void
(*f) (int x, int y));
void glutPassiveMotionFunc(void (*f) (int x,
int y));
void glutEntryFunc(void (*f)
(int state)); //returns GLUT_ENTERED or
GLUT_LEFT
Apparently, a "widget" in OpenGL is a special
kind of window with which a user can interact. These include
check boxes, text fields, menus, etc. GLUT menus are typically
pop-up type menus. To specify such a menu you must
-
provide strings to describe each menu
option
-
bind specific actions to each menu item
-
bind each menu item to a mouse button
Menus are usually created in main() or init().
Top level menus (you can have submenus) are created by the following
function, which takes the name of the callback function for the menu
and returns an integer identifier for the menu:
int
glutCreateMenu(void (*f) (int value))
The menu thus created will then be the current
menu. The current menu can be changed using
void glutSetMenu(int id)
You add entries to the current menu with
void glutAddMenuEntry(char *name, int value)
and the menu is then attached to a mouse button
with
void glutAttachMenu(int button)
All very sensible, no? For example, the
following snippet (part of main()) will use the right mouse button
to pull down a menu with two enteries: clear the screen & end the
program.
glutCreateMenu(menu01);
glutAddMenuEntry("wipe
screen", 1);
glutAddMenuEntry("exit
program", 2);
glutAttachMenu(GLUT_RIGHT_BUTTON);
Since there is only one menu, we don't have to
name it. The menu01 callback function can then be defined by
something like
void menu01(int
value) {
if(value == 1) {
glClear(GL_COLOR_BUFFER_BIT);
glutSwapBuffers(); //or glFlush()
}
if(value == 2)
exit(0);
}
The submenu must be named according to it's
entry in the its parent menu. When the user moves the mouse to
this entry, the submenu pops up. The function is
void glutAddSubMenu(char
*name, int menu)
This is pretty deadly boring, so I'll get to
the example and call it a day.

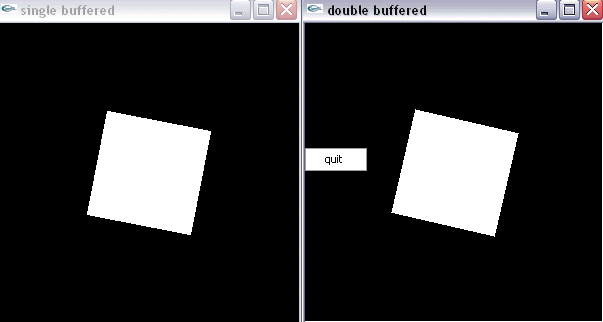

Wow, this required more tedium the a barrel
uncut cuticles. Here's a snapshot of the animation which shows
a rotating square in each window. The complet code follows.
As you can see, there are two windows created: a single buffered
window and a double buffered window (the difference is hardly
discernable on my machine.) The more obvious difference is
that the application can be closed by pressing 'q' or 'Q' is the
mouse if over the first window, or by right clicking to bring up the
"quit" menu and then selecting it on the right window:
//
single_double from OpenGl by Edward Angel
#include <GL/glut.h>
#include <math.h>
#define DEG_TO_RAD 0.017453
#define NULL 0
int singleb, doubleb;
//window ids
GLfloat theta = 0.0;
void displays();
void reshapeIt(int,
int);
void spinDisplay(void);
void mouse(int,
int, int,
int);
void keyIt(unsigned
char, int,
int);
void displays();
void displayd();
void quit_menu(int);
int main(int
argc, char** argv) {
glutInit(&argc, argv);
//create a single buffered window
glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
singleb = glutCreateWindow("single buffered");
//initIt();
glutDisplayFunc(displays);
glutReshapeFunc(reshapeIt);
glutIdleFunc(spinDisplay);
glutMouseFunc(mouse);
glutKeyboardFunc(keyIt);
//create double buffered window to right
glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGB);
glutInitWindowPosition(310,0);
doubleb = glutCreateWindow("double buffered");
//initIt();
glutDisplayFunc(displayd);
glutReshapeFunc(reshapeIt);
glutIdleFunc(spinDisplay);
glutMouseFunc(mouse);
glutCreateMenu(quit_menu);
glutAddMenuEntry("quit",1);
glutAttachMenu(GLUT_RIGHT_BUTTON);
//Enter even loop
glutMainLoop();
}
void displays() {
glClear(GL_COLOR_BUFFER_BIT);
glBegin(GL_POLYGON);
glVertex2f(cos(DEG_TO_RAD*theta),sin(DEG_TO_RAD*theta));
glVertex2f(-sin(DEG_TO_RAD*theta),cos(DEG_TO_RAD*theta));
glVertex2f(-cos(DEG_TO_RAD*theta),-sin(DEG_TO_RAD*theta));
glVertex2f(sin(DEG_TO_RAD*theta),-cos(DEG_TO_RAD*theta));
glEnd();
glFlush();
}
void displayd() {
glClear(GL_COLOR_BUFFER_BIT);
glBegin(GL_POLYGON);
glVertex2f(cos(DEG_TO_RAD*theta),sin(DEG_TO_RAD*theta));
glVertex2f(-sin(DEG_TO_RAD*theta),cos(DEG_TO_RAD*theta));
glVertex2f(-cos(DEG_TO_RAD*theta),-sin(DEG_TO_RAD*theta));
glVertex2f(sin(DEG_TO_RAD*theta),-cos(DEG_TO_RAD*theta));
glEnd();
glutSwapBuffers();
}
void spinDisplay (void)
{
//increment angle
theta += 2;
if (theta > 360.0) theta -= 360.0;
//draw single buffer window
glutSetWindow(singleb);
glutPostWindowRedisplay(singleb);
//draw double buffer window
glutSetWindow(doubleb);
glutPostWindowRedisplay(doubleb);
}
/*The two windows share the mouse callback
function. This funcion allows the user to stop
the roation in both windows by setting the idle
function to NULL (and to resotre the spinning later.)
Although the two windows use the same callback, each has
its own state. Stopping rotation in one window doesn't
stop the stat of the other window, which would require
clicking the mouse in that window.*/
void mouse(int
btn, int state,
int x, int
y) {
if(btn == GLUT_LEFT_BUTTON
&& state == GLUT_DOWN)
glutIdleFunc(spinDisplay);
if(btn == GLUT_MIDDLE_BUTTON
&& state == GLUT_DOWN)
glutIdleFunc(NULL);
}
// this is a standard reshape callback to
set up clipping window
void reshapeIt(int
w, int h) {
glViewport(0,0,w,h);
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
gluOrtho2D(-2.0,2.0,-2.0,2.0);
glMatrixMode(GL_MODELVIEW);
glLoadIdentity();
}
// Both a keyboard and a mouse callback
are illustrated here
void keyIt(unsigned
char key, int x,
int y) {
if(key == 'Q' || key == 'q')
exit(0);
}
void quit_menu(int
id) {
if(id == 1)
exit(0);
}
|
